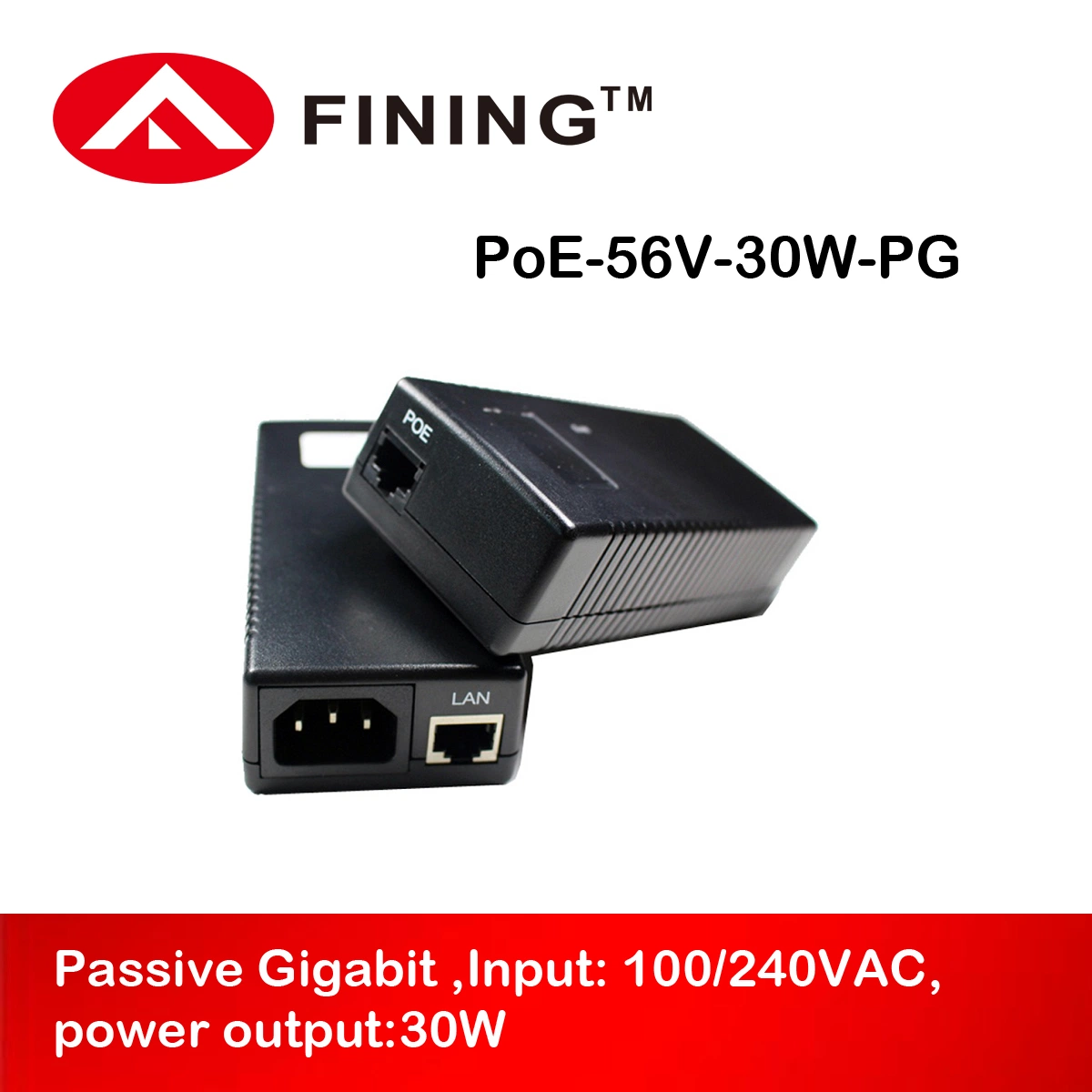

56V0.54A Gigabit passive PoE injector
The PoE injector can realize simultaneous delivery of device network data and power via one
Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 33.6W, which is a single
port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access
points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce
the installation cost and improve the network performance.
The PoE injector can realize simultaneous delivery of device network data and power via one
Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 33.6W, which is a single
port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access
points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce
the installation cost and improve the network performance.
Product Features:
| Delivers power and data through one Ethernet cable for easy network extension |
| Plug and Play, no configuration required |
| CE/FCC and RoHS Certified |
| Power Over Ethernet |
| One PoE port to power connected devices for flexible network deployment |
| Plug and Play |
| Plastic case & power plug integrated design |
| Easy setup, no configuration required |
| 30W power output |
Product Specifications:
| Data Rate: | 10/100/1000Mbps |
| DC Output Voltage: | 56VDC |
| DC Output Current: | 540mA |
| Interface: | 2 X RJ-45 (Data-In LAN+PoE Out) |
| Power Out Pins: | Midspan 4,5(+),7,8(-);Endspan1,2(+),3,6(-) |
| Operating Temp: | 0 to 40°C |
| Power Input: | 100/240VAC |
| AC Input Current: | 0.7A Max |
| Standard: | IEEE802.3at non-compatible |
| UL and CE/FCC Certified | |
Product Applications:
IP Surveillance Industy: IP Network Camera
IP Phone: Desktop IP Phone &Wireless IP Phone
WLAN Devices: Wireless APS
Other Ethernet Devices
