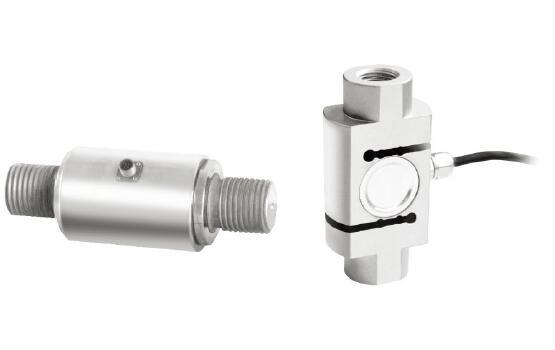

Overview:
| Place of Origin | Shanghai, China | Brand Name | NS | Model Number | NS-WL2 |
| Type of Sensor | LOAD CELL | Rated Capacity | 0~150 ton | Output Signal | 2.0mV/V, 0~5V, 0~10V, 4-20mA, RS485 etc. |
| Accuracy | ±0.05%F.S(typ.) | Electrical Connection | Flying lead or customized | Mechanical Connection | Bolt and Nut |
| Power Supply | 24 Vdc (connect to amplifier) | Operational Mode | Pull , Press two direction | Measuring Medium | vertical force from solid |
| Material | Stainless Steel | Certificate | Obtain RoHs,CE, ISO9001 certification | Lead Time | 2~3 weeks |
Why you choose and trust TM Sensor?
You benefits from:
♦ Our P&D Laboratories: We have two P&D laboratories in China to develop products under the severe environment, we can conduct in-depth performance and cost-effective products development by the P&D labs.
♦ Factory Experience : More than 16 years of experience in manufacturing sensor.
♦ Supply Ability : At least 112,500 pcs sensor product per Month.
♦ Supply Area : All over the world, about 70 countries.
♦ Primary Customers : TYCO, Honeywell, Carrier, DAIKIN, LG, and SANY GROUP.
♦ Certificate : CE, RoHs, ISO9001.
♦ OEM/ODM : Accept, we are able to offer a total solution for your weighing system.
Maintenace and After-Service:
♦ Prompt response upon customer's feedback within 24 hours: A/S engineer team will be one-on-one service for you to exclude obstacles during using sensors.
♦ 12 months' warranty period: free sensor maintenance, except artificial damage, we guarantee bear all the freight back and forth.
♦ Product maintenance: TM guarantee maintenance the whole life of the sensors.
How to order:
♦ In order to recommend you the most suitable sensor and make an accurate
quotation,please provide the following information and send it to our sales when you are going to make an inquiry,
for example, now you want to buy a load cell, you already have specification for
(1) Measurement Range: 100Kg
(2) Power supply: 24Vdc
(3) Output signal: 4~20mA
(4) Operational Mode:only press
(5) Electrical Connection: 4-pole Connector
Check with our below ordering model guide, you have the model NS-WL2-100Kg242I3.
send us this code, you will be received price and lead time instantly.
Official Certificates:
Production Facility
For more information, please refer to our website: http://tmsensor.en.made-in-china.com or contact me.
