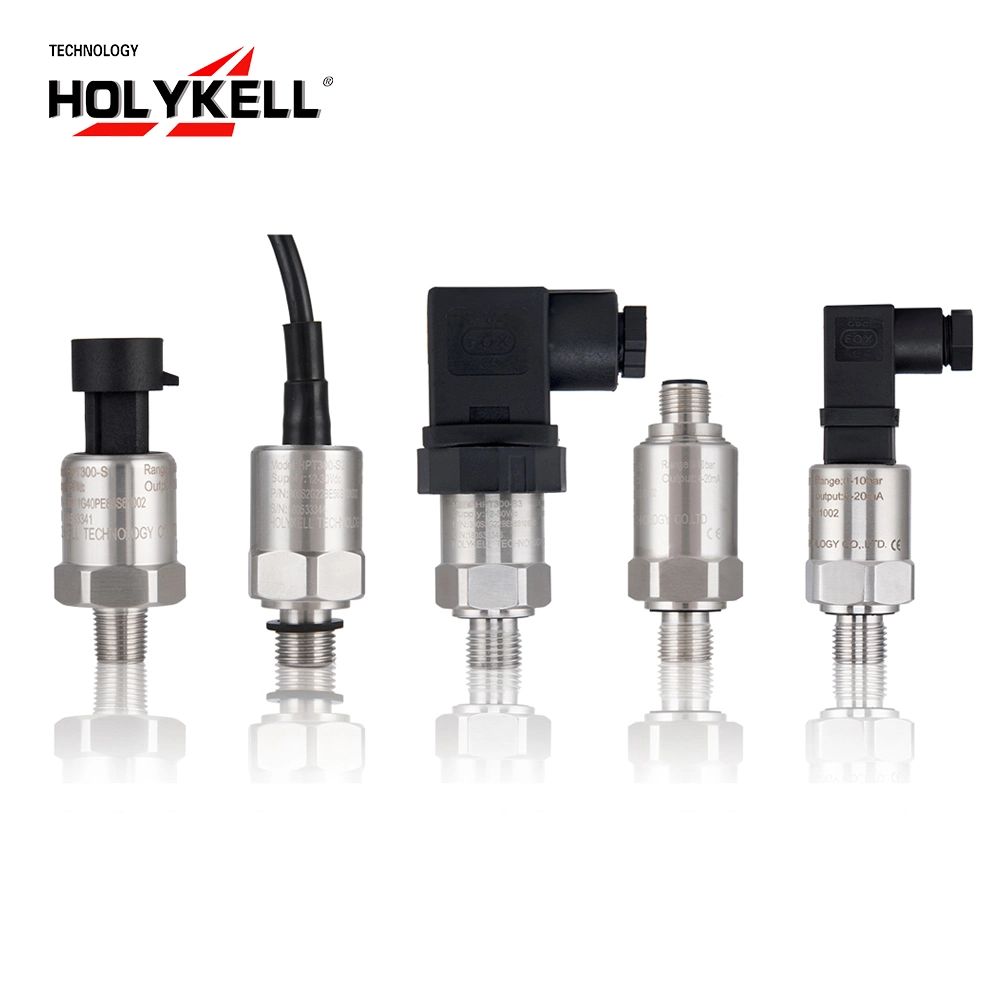

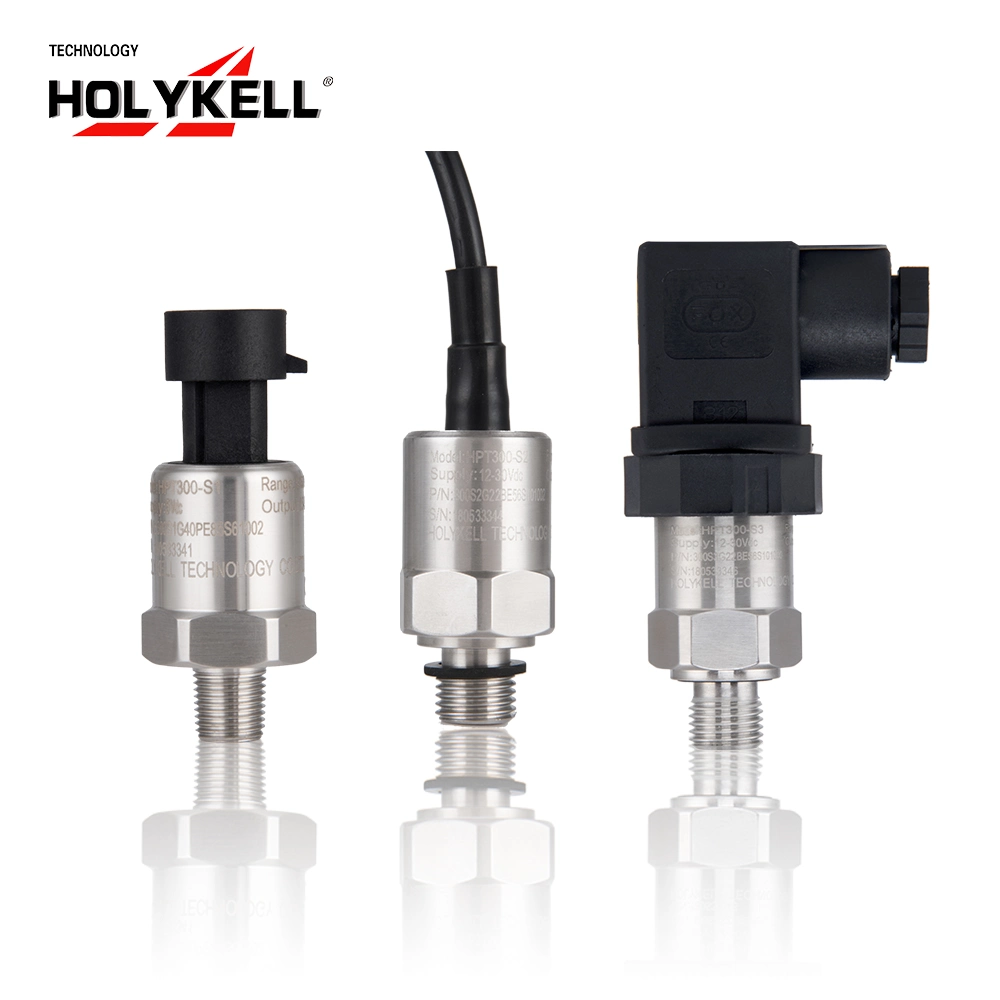

Holykell Low Cost Air Compressors Ceramic Water Pressure Sensor Price
Why Choose Holykell Analog 4 Pin Connector Compressor Industry Pressure Transmitter ?
a.Low cost compact type
b.Imported Germany technology Ceramic sensors, 5-10 years design
c.Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years
d.Linear Amplified Output
e.Automatic temperature compensation -40~80,
Temperature drift Automatic modified linear ≤0.01%FS
f.Superior Long term Stability
g.Excellent Repeat ability/Hysteresis
h.EMI/RFI Rejection
i.Low power consumption
j.Ten million cycle life expectancy
k.Outstanding shock& vibration performance
TECHNICAL PARAMETER FOR Holykell HPT300-S CE RoHS ceramic generator oil pressure sensor :
Pressure Range | -1-0-1 Bar.....600 Bar Optional | ||||
Accuracy | ≤ ±1.0%F.S ≤ ±0.5%F.S ≤ ±0.25%F.S (Customized) | ||||
Diaphragm material | Piezoresistive Flush Ceramic | ||||
Electronic Wire | 2 Wires | 3 Wires | |||
Output | 4~20mA | 0~5V | 0~10 V | 0.5~4.5 V | By Customized |
Power Supply | 12~36 V DC | 12~36 V DC | 15~36Vdc | 5 V DC | By Customized |
Insulate resistance | >100M Ω @50V | ||||
Electronic connection | Terminal Box (DIN43650 Hirschman Connector, IP65) Directly sealed cable IP67; M12 4 Pins connector IP65; Small Hirschman Connector; connection are optional. | ||||
Pressure connect port | 1/8''NPT male, 1/4''NPT male 1/4''NPT Female, G1/2'' male, G1/4''male/female, 7/16''-20 UNF male/female are optional. (by Customized) | ||||
Response time | ≤10ms | ||||
Certificate approving | CE Certificate. | ||||
EMC Standard | electromagnetic radiation:EN50081-1/-2 electromagnetic susceptibility:EN50082-2 | ||||
Water Proof | IP65 to IP67 | ||||
Weight | Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable) | ||||
Order information : Pressure range :0-10 bar , Output :4-20mA , Power supply:12~36VDC ,
Process connection: 1/8"NPT male ,Electronic Connector:Directly cable
Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for all of items.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality ultrasonic level sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q. How to order ?
A. In order to recommend you the most suitable radar level sensors and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water, oil or others?
2. Level range: 0-10meters, or others?
3. Output signal: 4-20mA, RS485 or others?
