Rh605 three-axis wireless sensor vibration accelerometer sensor vibration sensor

Working Diagram: System Features:1. All channels synchronous collection2. One sensor collects both vibration and temperature3. Alarm SMS/EMAIL for both vibration and temperature data4. Intelligent alarm: minimal sampling value(RMS) interval  5min, good coverage of machine operation5. Wireless work mode, no need wi

Featured Products

Working Diagram:

Rh605 Triaxial Wireless Sensor Vibration Accelerometer Sensor Vibration Transducer


System Features:

1. All channels synchronous collection
2. One sensor collects both vibration and temperature
3. Alarm SMS/EMAIL for both vibration and temperature data
4. Intelligent alarm: minimal sampling value(RMS) interval  5min, good coverage of machine operation
5. Wireless work mode, no need wiring work, saving wiring cost,
Easy to Install
6. Multiple communication options
7. Convenient installation
RONDS IWMS has no signal cable during installation, 2 years battery life of wireless accelerometer, secure installation of accelerometer with magnet base and M6 bolt. Satisfy the requirement of explosion proof degree on site
8. Four in one sensor--vibration and temperature integrated sensor
Integrated design, synchronous collection of acceleration, velocity and displacement and temperature


Technical Parameters

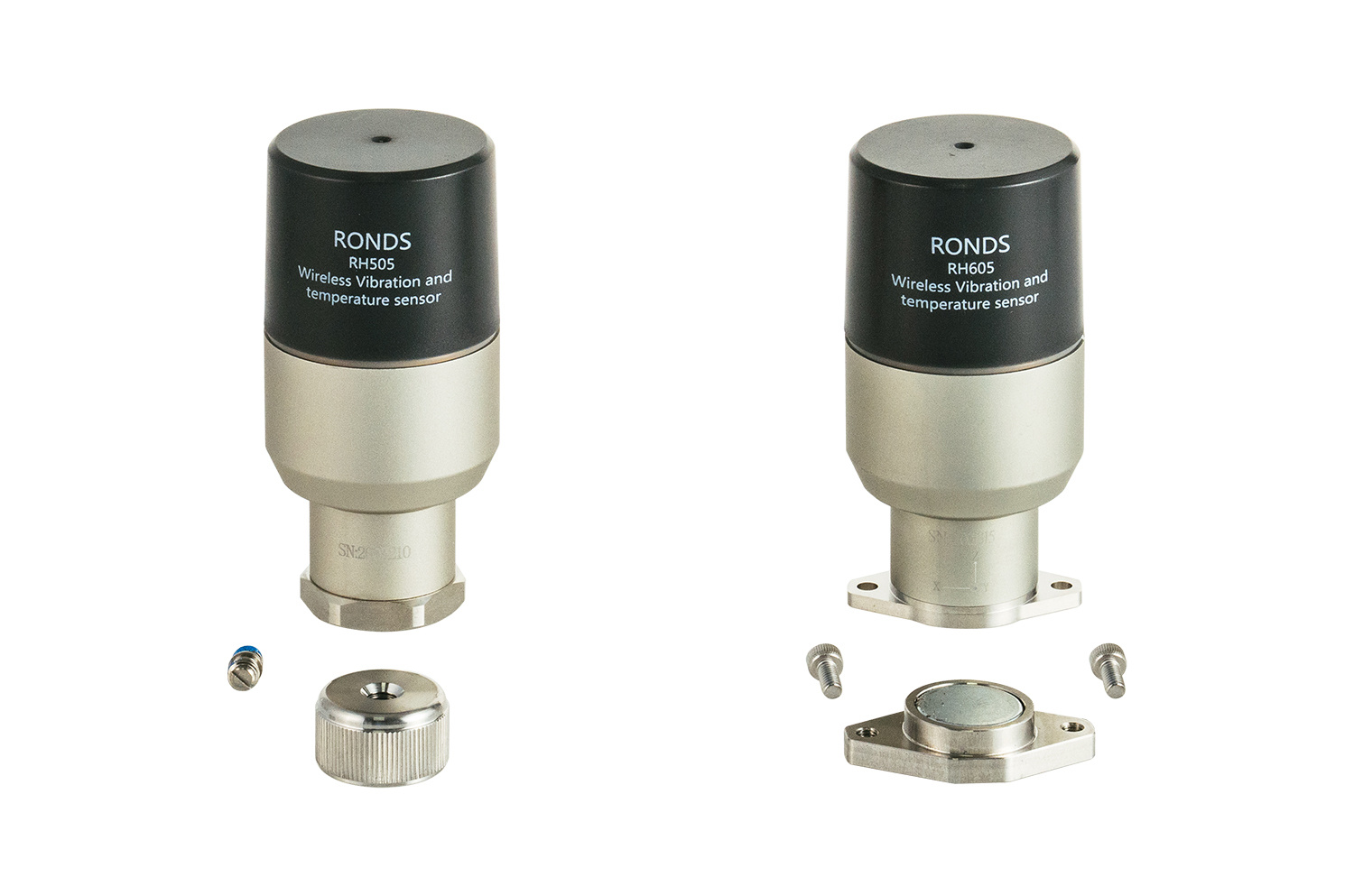

RH505 Wireless Vibration and Temperature Integrated Sensor
Vibration Measurement Parameter
Vibration Range±50 g
Linearity1%
Frequency Range (±3dB)2~20kHz
Sampling rate1280Hz~51.2kHz
Analysis frequency500Hz,1kHz,2kHz,5kHz,10kHz,20kHz
Waveform Length1K,2K,4K,8K,16K,32K,64K,128K
Lines400,800,1600,3200,6400,12800,25600,51200
Long time waveform Maximal length 2M
Temperature Measurement Parameter
Temperature Range-40~125 ºC
Temperature Accuracy±1 ºC (-40ºC~125ºC)
Electrical and Structure Parameter
Power SupplyLithium - thionyl chloride battery, 3.6V, 3.3Ah
Communication Method2.4GHz IEEE 802.15.4
Dimension46 mm × 94 mm (Diameter * Height)
Weight188 g
Environment Parameter
Working Temperature-40~70 ºC
IP gradeIP67

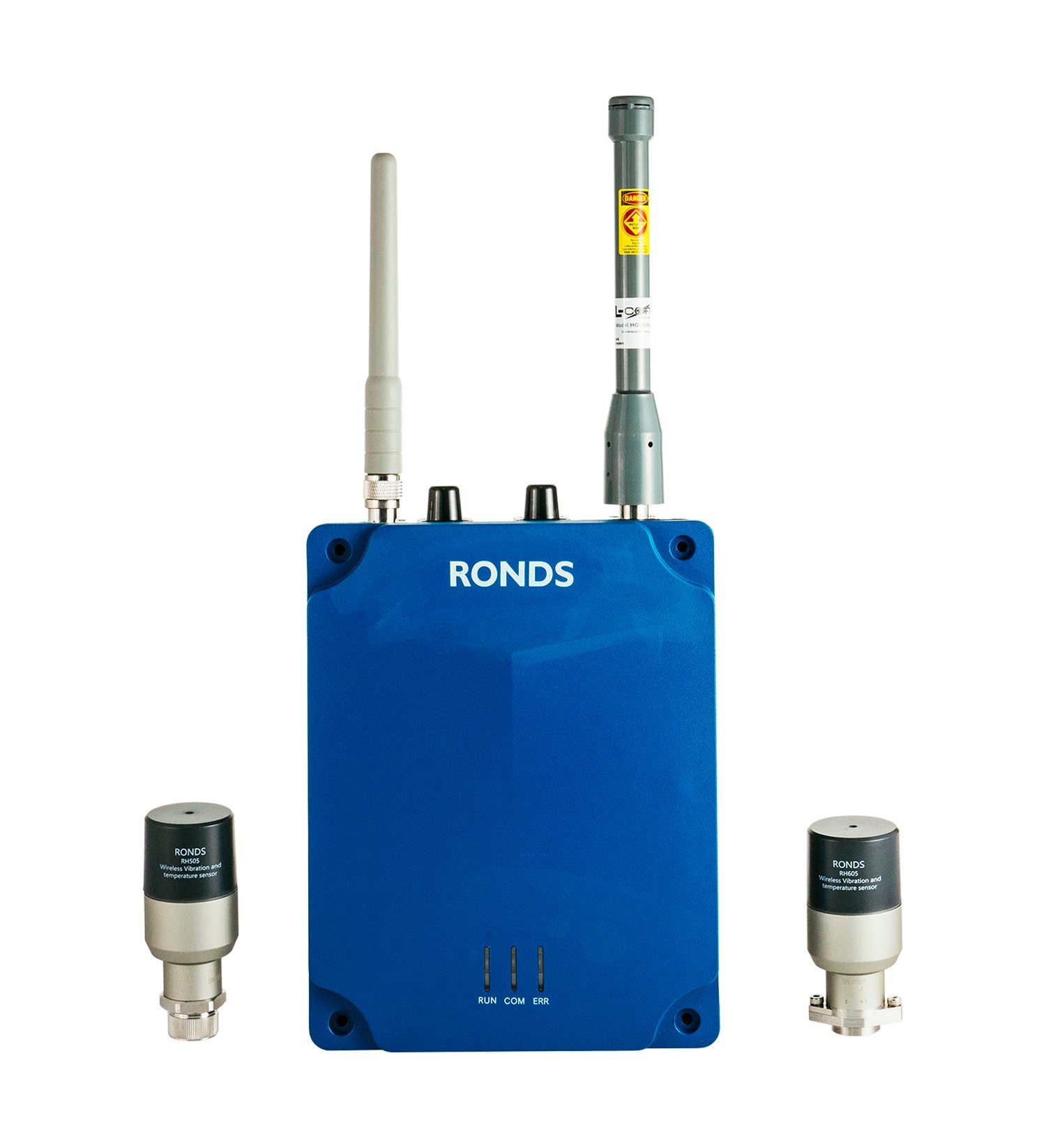

RH560 Wireless data collector
Input and output
Communication with Sensor2.4GHz IEEE 802.15.4
Indicator LEDTotal 3 pieces
(working, communication, abnormal status)
Number of RH505 connecting30~60 units according to real application condition
Electrical and Structure Parameter
Power Supply220V AC
Dimension203 mm × 82 mm × 260 mm  (Length * Width * Height)
Weight3 kg
MountingHanging or fixation through holder
Environmental Parameter
Working Temperature-40~70 °C
IP gradeIP66

MOS3000 Software

Rh605 Triaxial Wireless Sensor Vibration Accelerometer Sensor Vibration Transducer
Rh605 Triaxial Wireless Sensor Vibration Accelerometer Sensor Vibration Transducer

Site Installation

Rh605 Triaxial Wireless Sensor Vibration Accelerometer Sensor Vibration Transducer
Rh605 Triaxial Wireless Sensor Vibration Accelerometer Sensor Vibration Transducer

Rh605 Triaxial Wireless Sensor Vibration Accelerometer Sensor Vibration Transducer


Ronds

30 professional vibration analysts
 Diagnosis experts with more than 20 years of experience
 CAT III vibration analysts
 CAT II vibration analysts

Intelligent Algorithm--big data team
Algorithm team with 11members, led by famous doctoral tutor
Big data team with 13 members

Remote Diagonistic Center and Lab

Rh605 Triaxial Wireless Sensor Vibration Accelerometer Sensor Vibration Transducer
