Features

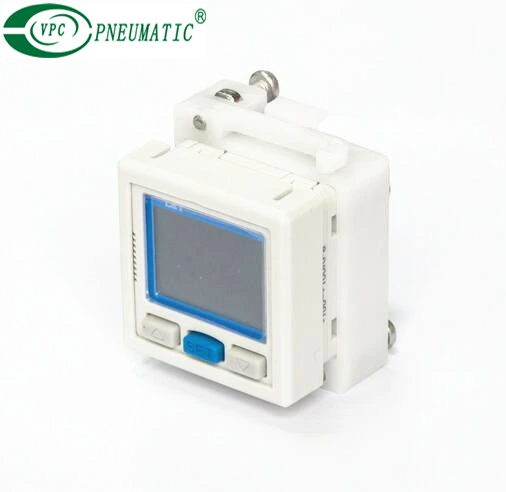

--Mounting:Panel or braket;
--Analog output:1-5V
--2 NPN output;
--Pressure unit: Kpa,Mpa,Psi.Bar;

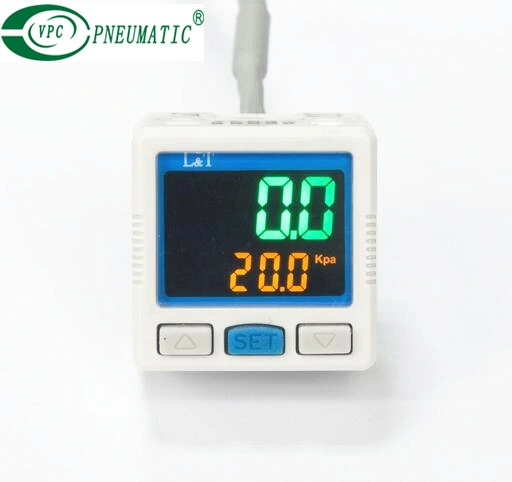

--2-color digital LCD display.
--Pressure indicator
--Pressures witch
--Pressure controller
--Pressure transmitter;
Ordering Code
Specification
--Pressures witch
--Pressure controller
--Pressure transmitter;
Ordering Code
Specification
| Model | DPS-301 Compound | DPS-310 Positive | |
| Pressure Measurement | Range of Measurement | -100kPa ~ 100kPa | -0.100MPa~1.000MPa |
| Setting Range | -100kPa ~ 100kPa | -0.100MPa~1.000MPa | |
| Pressure-resistance | 500kPa | 1.500MPa | |
| Pressure Types | Non-flammable,non-corrosive gas,gauge pressure measurement | ||
| Measurement Accuracy | ≤±2%F.S.(Ambient temperature 25ºC) | ||
| Temperature Error | ≤±3%F.S.(Temperature range 0~50ºC) | ||
| Measurement Pattern | Hysteresis mode | ||
| Single point mode | |||
| Window mode | |||
| Pressure Interface | External R1/8,NPT1/8,G1/8 option,internal thread M5 | ||
| Pressure Display | Brief Description | LCD display,4-digital measurement value,unit display,output status display | |
| Display Mode | Adjustable backlight, 4 groups of display models | ||
| Input Power | Voltage Range | 12~24VDC ±10% | |
| Consumed Power | 40mA Max(non-load) | ||
| Output Signal | Transistor Output | NPN open-collector output | PNP open-collector output |
| Output current:80mA MAX | Output current:80mA MAX | ||
| Voltage drop:≤1V | Voltage drop:≤1V | ||
| Response Time | Adjustable:2.5ms,20ms,100ms,500ms,1000ms,1500ms | ||
| Short-circuit Protection | Yes | ||
| Environmental Resistance | IP Level | IP40 | |
| Environmental Temp | Operating temperature 0~50ºC,storage temperature-20~60ºC | ||
| Environmental humidity | Environmental humidity | ||
| Insulation Voltage | 1000VAC 1min | ||
| Insulation Resistance | ≥50MΩ(500VDC) | ||
| Impact Resistance | Max 100m/s2,3 times each in6 directions of X.Y and Z | ||
| Vibration Resistance | Amplitude 1.5mm.10HZ~500HZ,2 hours each direction of X.Y and Z | ||
1. Do not drop knock or apply excessive impact while handling. Otherwisecould cause damage and a malfunction
2. The tensile strength of the cord is 60N. Applying a greater pulling force on it can cause a malfunction.
3. Do not exceed the screw-in torque of 7N.m when installing piping.Exceeding this value may cause malfunctioning of the sensor.
4. Do not use it with corrosive and/or flammable gases or liquids.
5.Please use it within rated pressure range.
6. Turn off the power before connecting the wires.
7. Don't use in an environment with spattering liquid of oil or solvent.
8. Separate power lines from high voltage lines, avoiding wiring in the same conduit with these lines.
