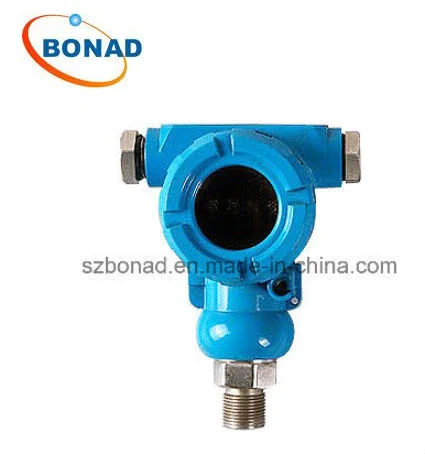

CFBPB400 digital pressure sensor for petroleum
Technical parameters
| Measure medium | medium compatible with 316 such as gas,liquid,oil etc | standard | Operating tempt:(-40~80)ºC Compensation tempt:(-20~70)ºC |
| Measure form and range | Gauge (G)--max(0-60)MPa,min(0-0.5)KPa | ||
| Absolute pressure(A)--max(0-4)MPa,min(0-0.5)KPa | |||
| Negative pressure(B)--max(-0.1-40)MPa,min(-0.2-0.2)KPa | Working tempt | -40~80ºC compensation tempt:(-20~70)ºC | |
| Accuracy grade | 0.1,0.25,0.5 | Process connection | M20×1.5exteralnal thread(Φ3inner bore)or customize |
| overload | 2-5 times of range | Isolation diaphragm | 316stainless steel |
| Long-term stability | Less than 0.25%F•S/year,less than 0.5%F•S/year | Interface material | 1Cr18Ni9Ti |
| Supply power | 15-36VDC(standard voltage 24VDC) | Canning materials | alloy |
| Output signal | (4-20)mA,(0-10/20)mA (0-5)V,(1-5)V,(0-10)V | Waterproof level | Ip65 |
| Display usage | Pointer or digital (adjustable) |
FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
